CF011N and CF022N: Easy-to-Implement General-Purpose Models Focused on Essential Performance

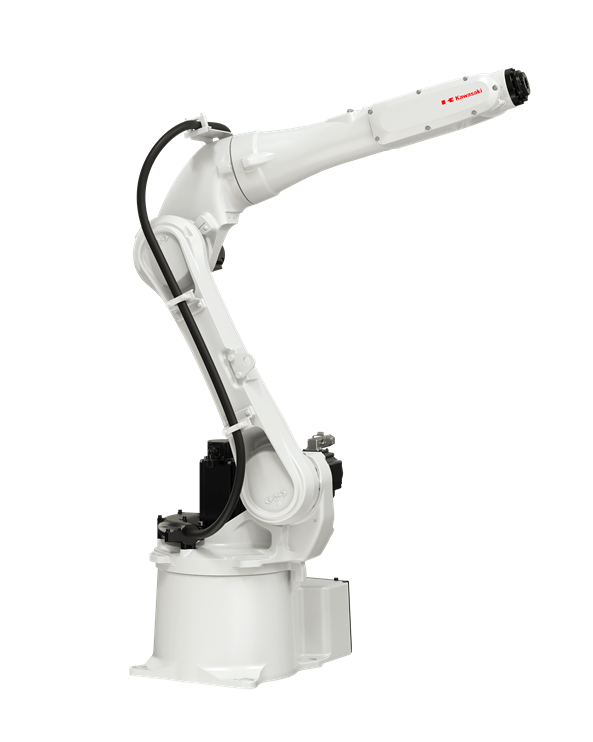

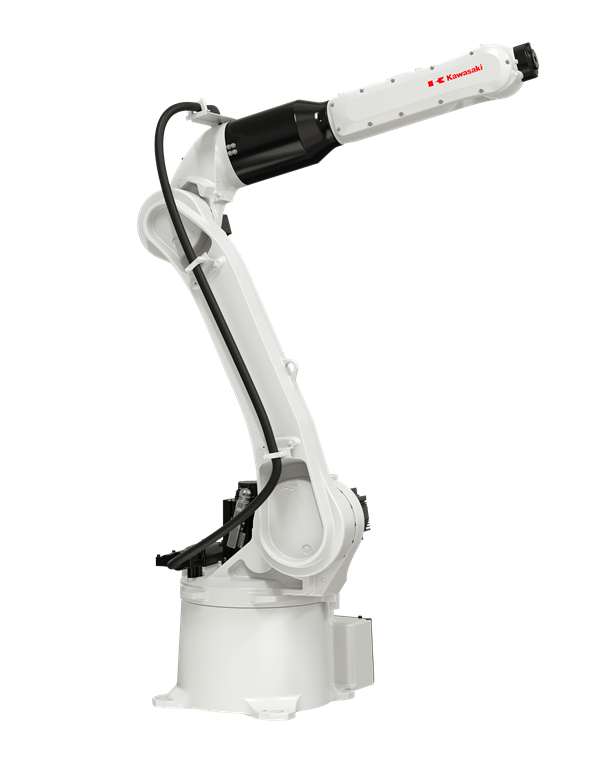

Kawasaki Robotics is pleased to announce the launch of two six-axis robots, the CF011N and CF022N, in its new CF Series of small- and medium-payload general-purpose robots.
Manufacturers have often faced a common challenge: large robots deliver high performance but are too large for the available space, while smaller general-purpose robots may not provide sufficient accuracy or speed. The CF Series was developed to address the need for a robot that offers the right balance. By focusing on the capabilities that are truly needed on the shop floor, the series combines practical performance with ease of implementation in a user-friendly general-purpose robot.
Main Features
The key strength of the CF011N and CF022N is their well-balanced combination of essential performance and ease of implementation. Compared with conventional robots in the same class, they offer higher operating speeds, support compact controllers, and come standard with the protection required for use in environments where dust and moisture may be present. They are an easy choice for both first-time robot users and customers already experienced in operating industrial and collaborative robots.
1. Faster Motion for Higher Production Output
The speed distribution across the joints has been optimized to enable faster operation. Shorter cycle times allow the same equipment to achieve higher production output. Rapid wrist motion also reduces waiting time and keeps operations moving smoothly in detailed tasks that require frequent changes in part orientation.
2. Easy Installation and Reliable Performance in Harsh Environments
Compatibility with new compact controllers reduces the required installation space and makes transportation and positioning easier. In addition, the wrist comes standard with dust- and water-resistant protection equivalent to IP67. Without the need for additional options, the robots can be installed in humid or dusty environments and continue to operate reliably over extended periods.
3. Easy Expansion for a Wide Range of Processes
Peripheral devices such as cameras and vision systems can be added easily, allowing systems to be configured flexibly to suit specific production requirements. By combining the CF011N and CF022N, which offer different payload capacities, customers can cover a wide range of processes within a single series, from light-duty precision assembly to the handling of moderately heavier workpieces.
Model Overview and Selection Guide
The two models differ in payload capacity and reach, making them complementary. The CF011N is well suited to handling small parts in confined spaces, while the CF022N is designed for somewhat heavier workpieces and a wider operating range. Customers can select the appropriate model according to the available installation space, workpiece weight, and required accuracy.
| Item | CF011N | CF022N |
| Suitable Applications | Precision work in confined spaces | Heavier workpieces and wider operating ranges |
| Maximum Payload | 11 kg | 22 kg |
| Maximum Reach | 1,455 mm | 1,814 mm |
| Main Applications | Assembly, inspection, material handling, workpiece loading/unloading, and more | Material handling, assembly, palletizing, grinding/deburring, and more |
* The information above provides a general overview. For detailed specifications, including the operating range and speed of each axis, please refer to the product pages and specification documents on the official website.
Applications
The CF011N and CF022N support a wide range of tasks across industries. Examples include material handling and workpiece loading and unloading, palletizing small food cartons, assembling electronic products, transporting printed circuit boards, and handling or loading and unloading automotive parts. The robots help advance automation across a diverse range of industries, including automotive, electronics, new energy, metalworking, and precision manufacturing.
Comprehensive Support from Implementation through Operation
With a customer-first approach, Kawasaki Robotics provides attentive support, from pre-installation planning through maintenance during operation. Kawasaki Robotics will continue to invest in research and development and contribute to the advancement of industrial automation by delivering products with outstanding performance and quality.
