Extra large robots up to 1,500kg payload

The M series are extra-large payload general-purpose robots that have been developed by combining Kawasaki’s accumulated technologies and experiences. They can be used to transport heavy objects such as automobile bodies.
They use a unique mechanism to achieve large payload capacities from 350 kg up to 1500 kg while being compact and capable of high precision positioning.

M series

■ Maximum payload of up to 1,500 kg allows for the transfer of heavy workpieces such as large casting products
■ High position repeatability allows for dynamic and accurate tasks
■ Slim body without counterweight achieves a wide range of motion and high rigidity (MG10HL/MG15H)

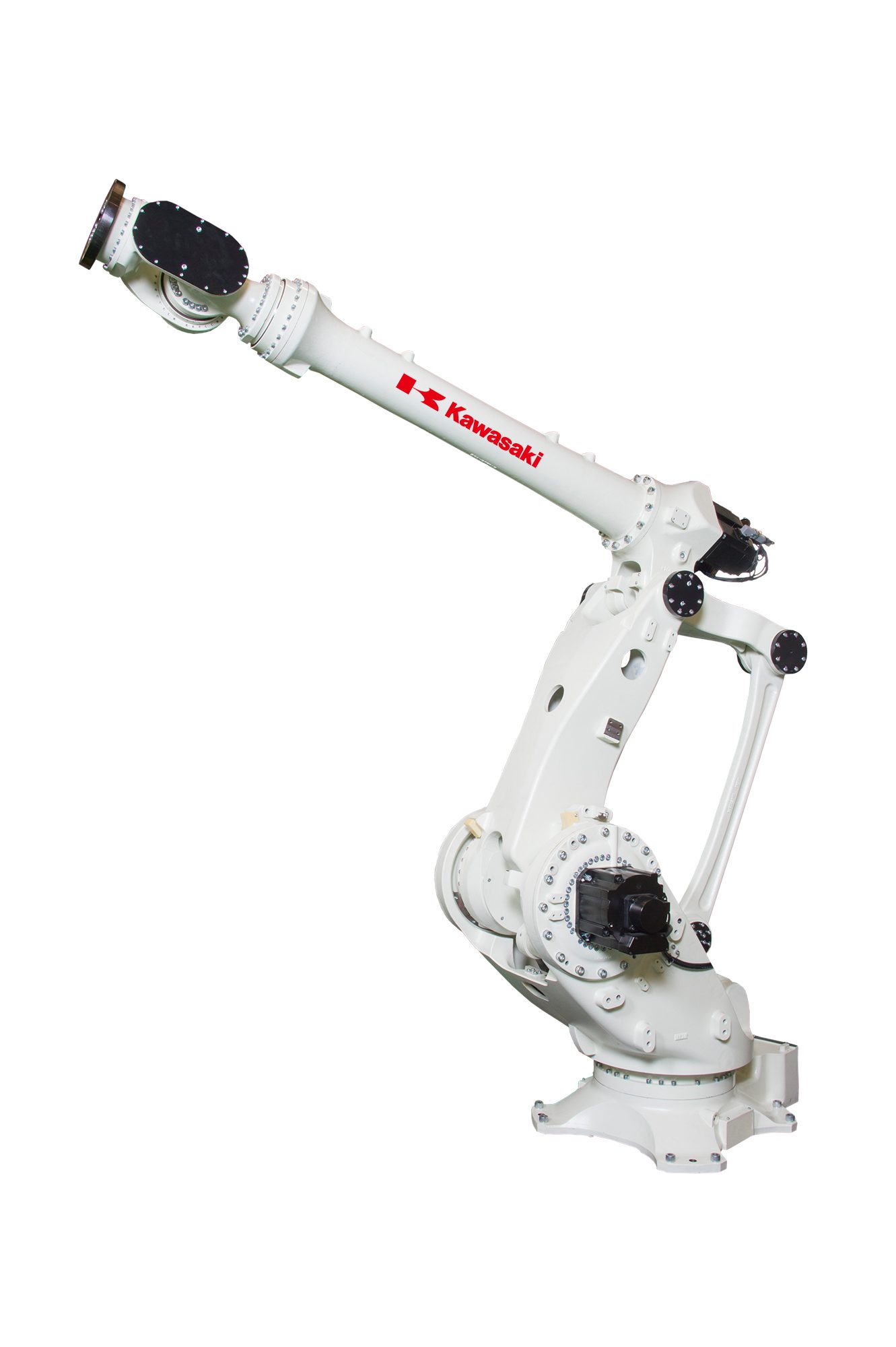

MX350L

MX350L

  • Payload 350kg
  • Max. Reach 3018mm
  • Applications Material Handling, Machine Tending
  • Robot Category Extra large robots up to 1,500kg payload
  • Mounting Floor
  • Series M series

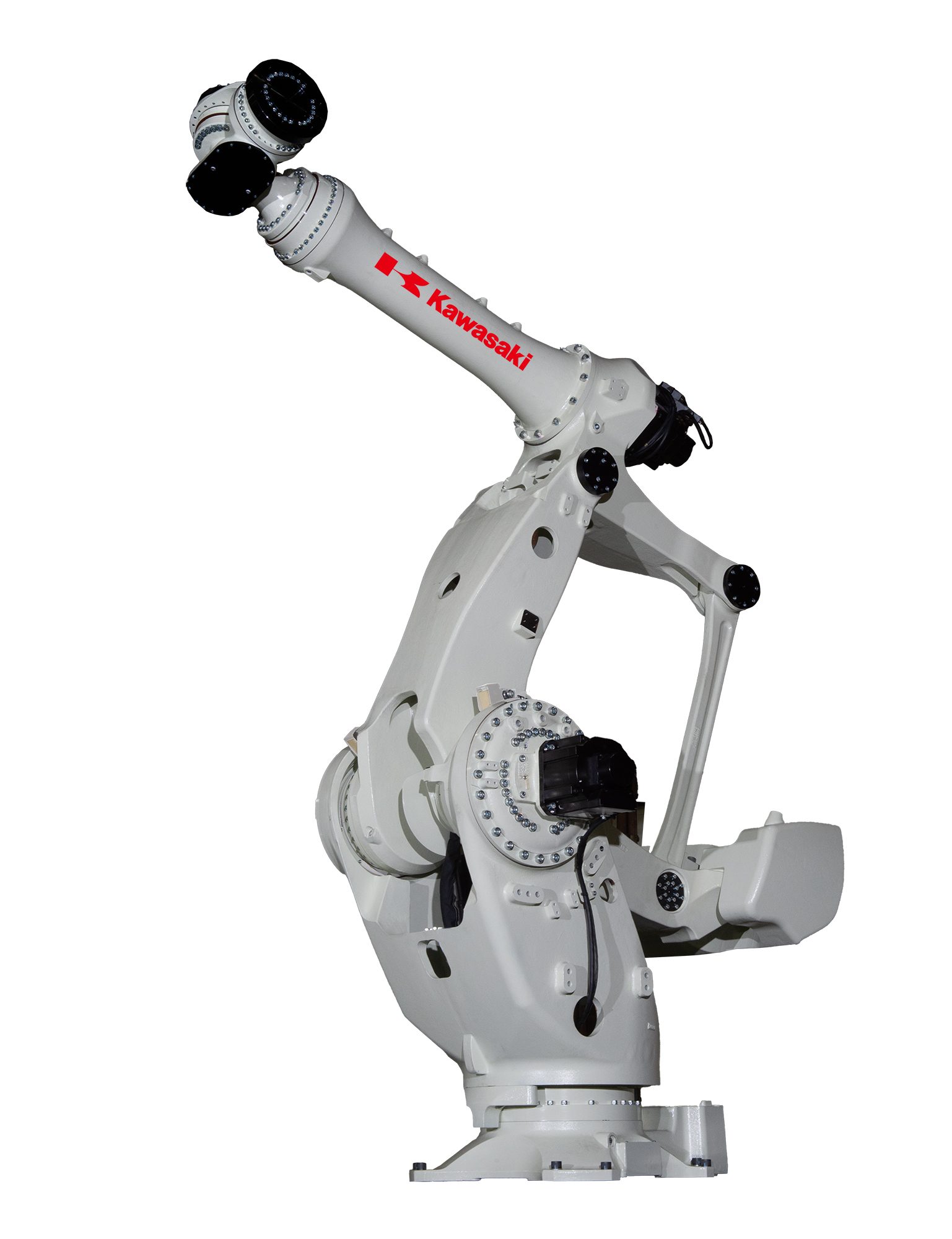

MX420L

MX420L

  • Payload 420kg
  • Max. Reach 2778mm
  • Applications Material Handling, Machine Tending
  • Robot Category Extra large robots up to 1,500kg payload
  • Mounting Floor
  • Series M series

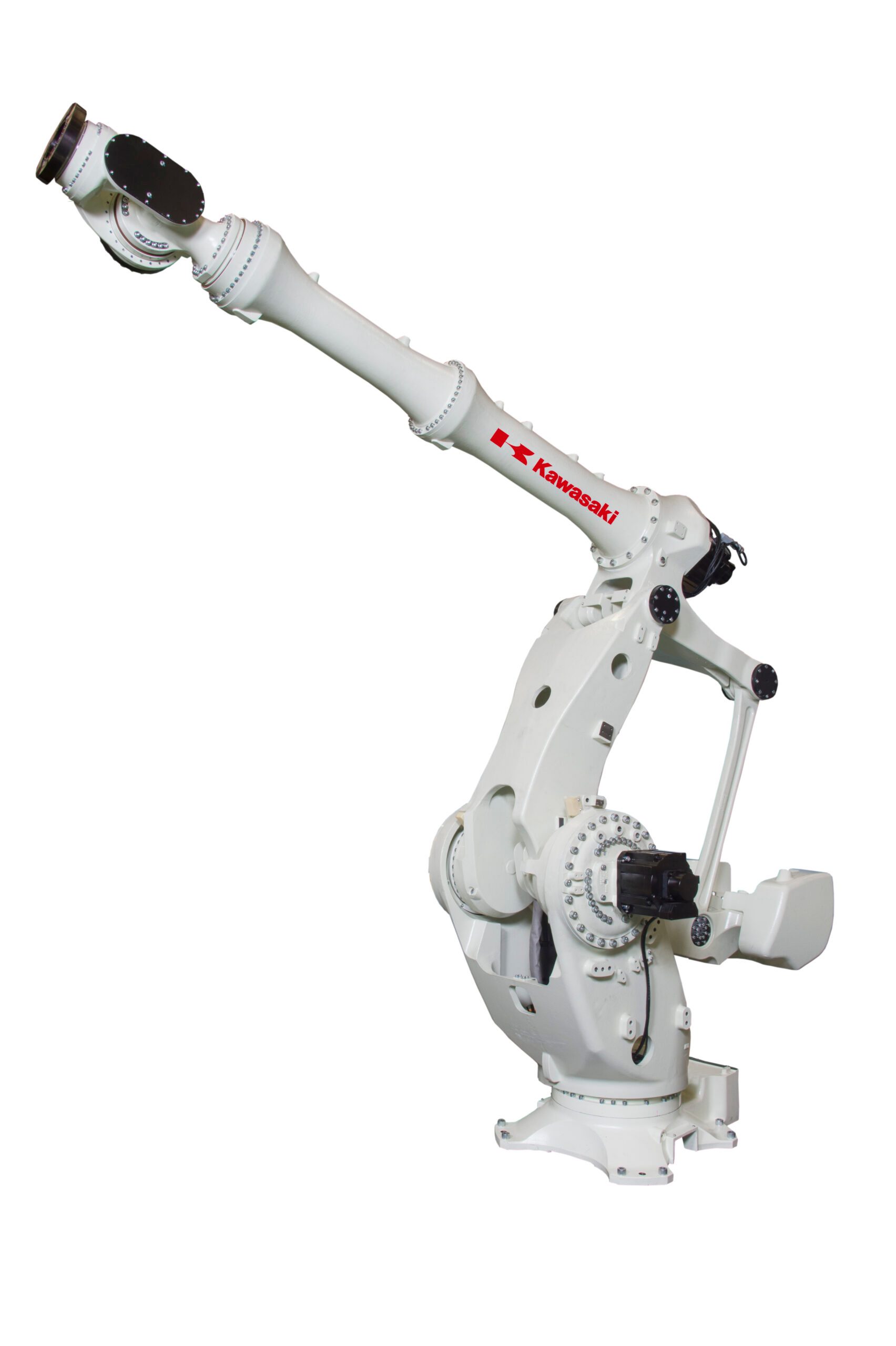

MX500N

MX500N

  • Payload 500kg
  • Max. Reach 2540mm
  • Applications Material Handling, Machine Tending
  • Robot Category Extra large robots up to 1,500kg payload
  • Mounting Floor
  • Series M series
MX700N

MX700N

  • Payload 700kg
  • Max. Reach 2540mm
  • Applications Material Handling, Machine Tending
  • Robot Category Extra large robots up to 1,500kg payload
  • Mounting Floor
  • Series M series
MT400N

MT400N

  • Payload 400kg
  • Max. Reach 3503mm
  • Applications Material Handling, Machine Tending
  • Robot Category Extra large robots up to 1,500kg payload
  • Mounting Shelf
  • Series M series
MG15HL

MG15HL

  • Payload 1500kg
  • Max. Reach 4005mm
  • Applications Material Handling, Machine Tending
  • Robot Category Extra large robots up to 1,500kg payload
  • Mounting Floor
  • Series M series
