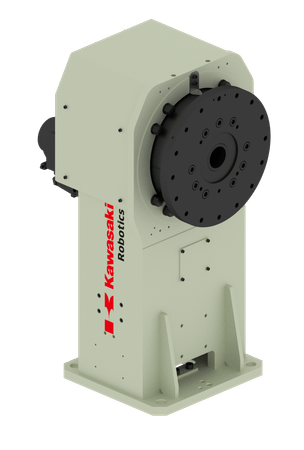

Single axis welding positioner with horizontal rotating axis and 500 kg payload
PST500
General purpose single axis positioner - basic modul
Horizontal rotating axis
Kawasaki external axis (E0x controller)
Payload 500 kg
| Max. payload | 500 kg |
| Degree of freedom | 1 axis |
| Nominal torque JT1 | 950 Nm |
| Max. torque JT1 | 2450 Nm |
| Max. tilting torque | 1750 Nm |
| Turning range JT1 | +/-360° |
| Max. rotating speed JT1 | 150°/s |
| Repeatability | ±0.05 mm |
| Max. offset COG from rotating axis JT1 | 200 mm |
| Max. mass moment of inertia JT1 | 330 kgm2 |
| Mass | 142.0000 |
| Default height of rotating axis JT1 | 545 mm |
| Installation | Floor |
| Color | NCS S 0510-G50Y & RAL9011 |
| Built-in utilities | Welding ground transfer system |
| Nominal weld current - 100% duty cycle | 500 A |
| Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
