Painting

Painting

ACHIEVE THE PROCESS CONTROL AND
PAINT QUALITY YOUR CUSTOMERS EXPECT

Automated painting applications require specialized equipment in order to achieve accurate and consistent paint finish quality. This specialized equipment includes an explosion-proof robot arm, spray applicator/bell, gear pumps, color change manifolds, solenoid valves, transducers and pressure regulators, to name a few. Kawasaki provides a variety of technologies to solve the challenges associated with achieving consistently premium paint finish quality.

Kawasaki offers a new line of robot arms in various sizes and configurations to meet any robotic painting application. These arms feature lightweight aluminum castings, a triple roll hollow wrist, as well as explosion proof cavities to house electrical control equipment. Certain models incorporate an open "process arm" for the mounting of any manufacturer's paint process equipment, in close proximity to the applicator, allowing for responsive paint process control. In addition to a standard 6-axis automotive style paint robot with a horizontal waist joint, a 7-axis pedestal robot is also available. The seventh axis has been incorporated as an additional (vertical) waist joint, designed specifically to increase the robot's significant work envelope. We also offer a line of pre-engineered paint cells to help jump start paint applications for general, non-automotive, industries.

Kawasaki's extensive automated painting experience can help you overcome your challenges with paint finishing throughput, consistency, and quality.

Application Video

Painting Recreational Vehicle Parts

Painting Plastics - Kawasaki KF121 robot with Servo Twister

Painting System for Automotive Body and Bumpers

Painting System for Automotive Body and Bumpers

Painting Line for Shinkansen Rail cars

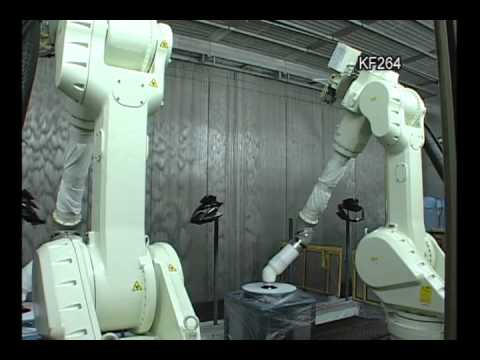

Painting Motorcycle Cowls - Kawasaki KF264 robot

Flame Treating Bumpers

Robots for Painting

Palletizing Robots

Palletizing Robots

High-speed palletizers for end-of-line applications. Payload capacities ranging from 80 to 700 kg.

Explosion-Proof Paint Robots

Explosion-Proof Paint Robots

Robots that combine high performance with easy integration to paint workpieces ranging from small parts to large vehicle bodies.

PRE-CONFIGURED PAINT PACKAGES

Paint servo shuttle / Paint servo twister

Kawasaki has developed servo controlled part positioning products that can be readily incorporated into a Kawasaki painting system. Six part positioning products that vary in motion as well as work piece capacity are available. Each of these products is driven by servo motors that are controlled as external axes by the robot controller. The Kawasaki paint servo peripherals listed below are all intrinsically safe and pressurized, suitable for a paint booth.

・Servo
・ShuttleServo
・TurntableServo
・SpinnerServo
・TwisterServo
・TombowServo
・Wing
