PST125

  • General purpose single axis positioner - basic module
  • Horizontal rotating axis
  • Kawasaki external axis (E0x controller)
Max. payload 125 kg
Degree of freedom 1 axis
Nominal torque JT1 265 Nm
Max. torque JT1 660 Nm
Max. tilting torque 850 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 180°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 200 mm
Max. mass moment of inertia JT1 80 kgm2
Mass 80.0000
Default height of rotating axis JT1 545 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no de

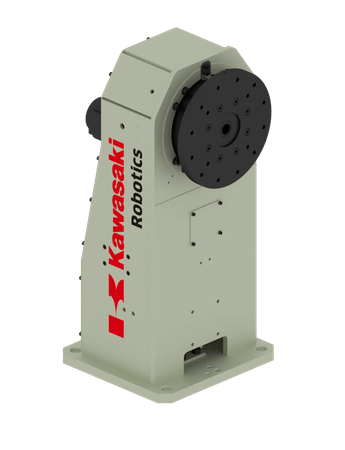

Single axis welding positioner with horizontal rotating axis and 125 kg payload
