General Purpose Robots (100-300 kg payload)

Kawasaki’s large-payload general-purpose robots provide durability, reliability and next-level performance. Offering up to a 300 kg payload, these flexible robots are used by manufacturers in numerous industrial environments, including automotive, aerospace, machinery, metal, electrical, electronics, and food sectors. This highly versatile series can be used for a wide range of applications, most notably assembly, material handling, and spot welding.

BX/BT series

■ Hollow-arm structure for easy installation, maintenance, and minimized wear
■ Extended reach, high speeds and advanced motion control technology reduce cycle times

BX130X

BX130X

  • Payload 130kg
  • Max. Reach 2991mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BX/BT series
BX100S

BX100S

  • Payload 100kg
  • Max. Reach 1634mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BX/BT series
BX100N

BX100N

  • Payload 100kg
  • Max. Reach 2200mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BX/BT series
BX200L

BX200L

  • Payload 200kg
  • Max. Reach 2597mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BX/BT series
BX200X

BX200X

  • Payload 200kg
  • Max. Reach 3412mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BX/BT series

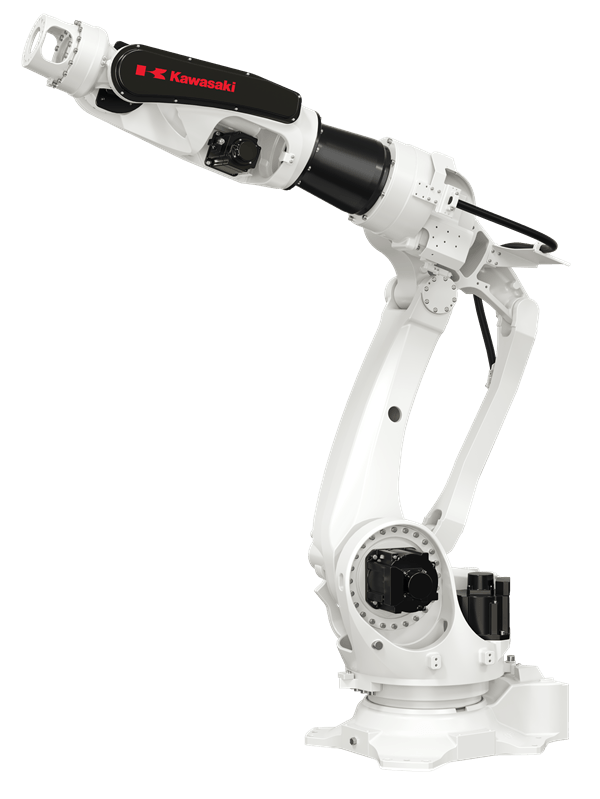

BX300L

BX300L

  • Payload 300kg
  • Max. Reach 2812mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BX/BT series
BT200L

BT200L

  • Payload 200kg
  • Max. Reach 3151mm
  • Applications Assembly, Material Handling, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Shelf
  • Series BX/BT series

BXP series

■ Hollow-arm structure for easy install, maintenance, and minimized wear
■ Lightweight, compact design for optimized performance
■ F series controller results in high speed operation

BXP110S

BXP110S

  • Payload 110kg
  • Max. Reach 1634mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BXP series

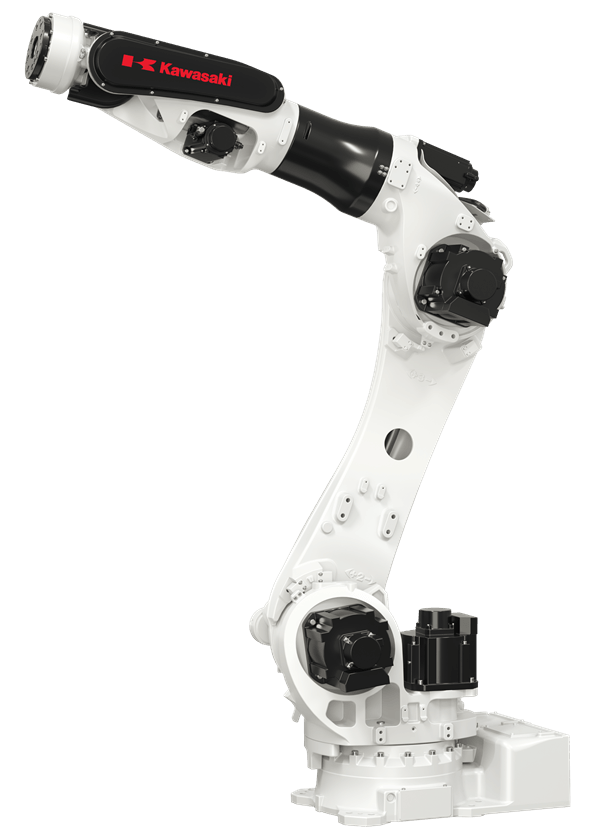

BXP110L

BXP110L

  • Payload 110kg
  • Max. Reach 2597mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BXP series

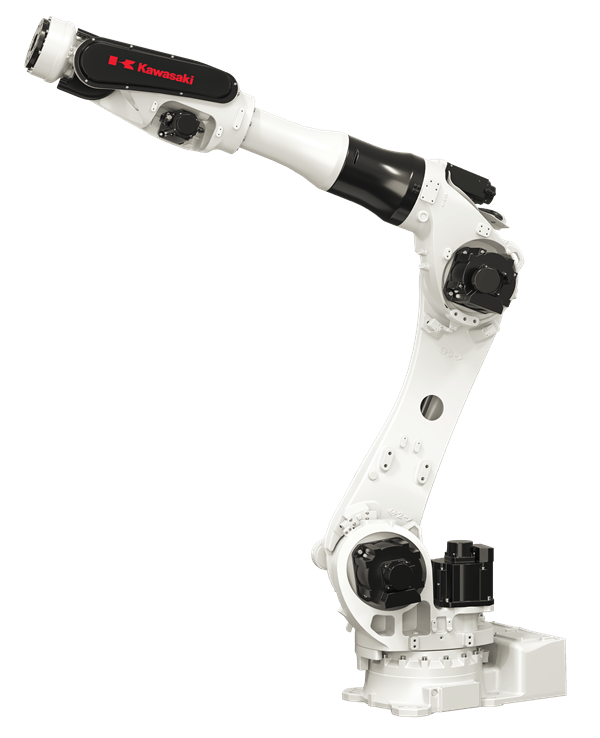

BXP135X

BXP135X

  • Payload 135kg
  • Max. Reach 2991mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BXP series
BXP210L

BXP210L

  • Payload 210kg
  • Max. Reach 2597mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series BXP series

Z series

■ Versatile robots for a wide range of applications
■ Wrist motors located on shoulder for use in harsh environments
■ 360° motion range for total flexibility

ZT200S

ZT200S

  • Payload 200kg
  • Max. Reach 3230mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Shelf
  • Series ZX series
ZT165U

ZT165U

  • Payload 165kg
  • Max. Reach 3230mm
  • Applications Assembly, Material Handling, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Shelf
  • Series ZX series
ZT130U

ZT130U

  • Payload 130kg
  • Max. Reach 3230mm
  • Applications Assembly, Material Handling, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Shelf
  • Series ZX series
ZX130L

ZX130L

  • Payload 130kg
  • Max. Reach 2951mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series ZX series
ZX165U

ZX165U

  • Payload 165kg
  • Max. Reach 2651mm
  • Applications Assembly, Material Handling, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series ZX series
ZX200S

ZX200S

  • Payload 200kg
  • Max. Reach 2651mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series ZX series

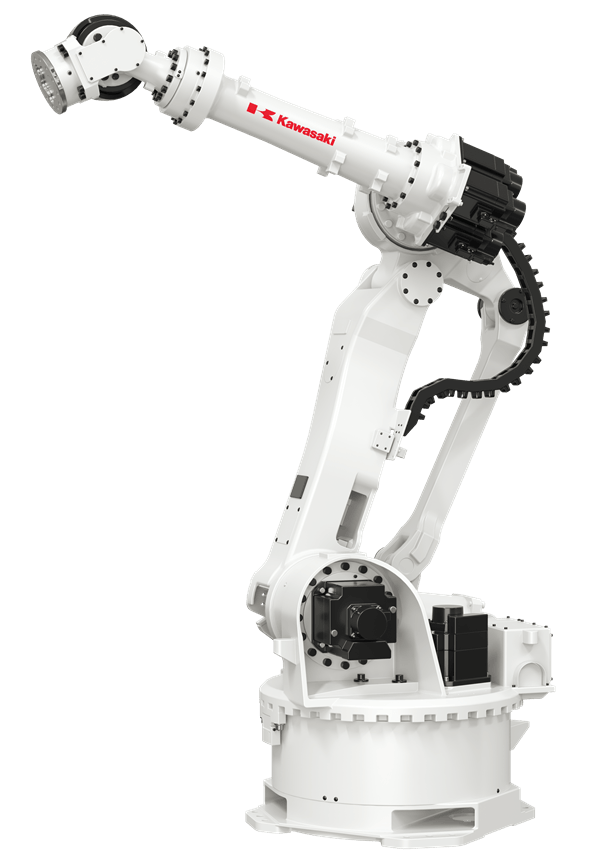

ZX300S

ZX300S

  • Payload 300kg
  • Max. Reach 2501mm
  • Applications Assembly, Material Handling, Palletizing, Spot Welding
  • Robot Category General Purpose Robots (100-300 kg payload)
  • Mounting Floor
  • Series ZX series
