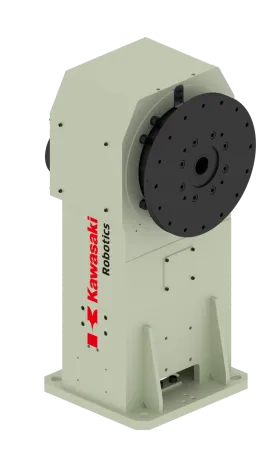

Single axis welding positioner with horizontal rotating axis and 250 kg payload
PST250
-
- General purpose single axis positioner - basic module
- Horizontal rotating axis
- Kawasaki external axis (E0x controller)
Max. payload 250 kg Degree of freedom 1 axis Nominal torque JT1 490 Nm Max. torque JT1 1200 Nm Max. tilting torque 1450 Nm Turning range JT1 +/-360° Max. rotating speed JT1 150°/s Repeatability ±0.05 mm Max. offset COG from rotating axis JT1 200 mm Max. mass moment of inertia JT1 192 kgm2 Mass 110.0000 Default height of rotating axis JT1 545 mm Installation Floor Color NCS S 0510-G50Y & RAL9011 Built-in utilities Welding ground transfer system Nominal weld current - 100% duty cycle 500 A Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
