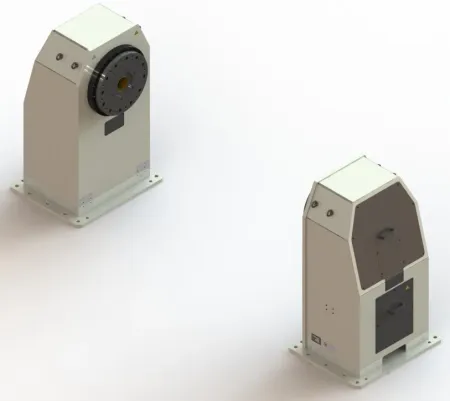

PST3000-H1

  • General purpose single axis positioner
  • Horizontal rotating axis
  • Supporting unit - extended length of work piece
  • Kawasaki external axis (E0x controller)
  • Option: central beam**
Max. payload 3300 kg
Degree of freedom 1 axis
Nominal torque JT1 3136 Nm
Max. torque JT1 7840 Nm
Max. tilting torque 20000 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 70°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 97 mm
Max. mass moment of inertia JT1 3200 kgm2
Mass 1400.0000
Default height of rotating axis JT1 1025 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew

Single axis welding positioner with horizontal rotating axis and 3300 kg payload
