Explosion-Proof Teach Pendant:
Large, color LCD touch screen display
The arrangement of keys has been optimized through extensive studies of operator hand movement
Equipped with safety switches

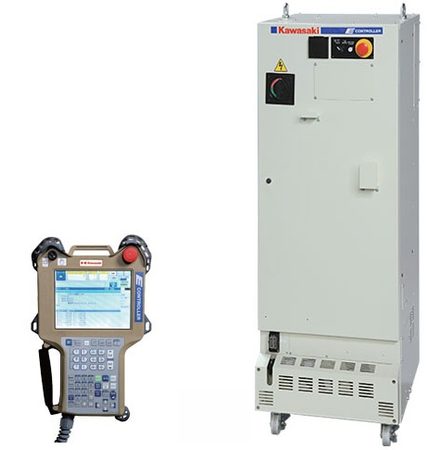

These controllers are for explosion-proof painting robots with a new explosion-proof teach pendant featuring a color LCD, Programming and editing work can efficiently be carried out from inside the explosion-proof paint booth.
The high performance CPU provides extremely accurate trajectory control, high-speed program execution as well as extremely fast loading and saving of files. Two Ethernet ports are available for the user to connect directly to a laptop or to an Ethernet network to remotely save programs or monitor the process.
USER FRIENDLY OPERATION
The easy to use intrinsically safe teach pendant now incorporates a low-voltage color LCD touchscreen as well as motor power and cycle start at your fingertips while programming inside the paint booth. Multiple information screens can be displayed simultaneously including spray condition and diagnostics. The intuitive teaching interface is simple to use.
ABUNDANCE OF FEATURES
The extremely powerful Kawasaki AS Programming Language allows for sophisticated motion and sequence control. The built-in paint process data bank is used to configure presets for flow rate, shaping air, and atomizing air settings.
Three additional axes can be added for control of process equipment and a 7th axis rail. Numerous communication field buses are available for controlling peripheral devices. The Kawasaki K-Logic sequencer software can be combined with user-customized interface panels on the teach pendant.
EXPLOSION-PROOF TEACH PENDANT
The explosion-proof teach pendant is designed for use while in the painting area. Its intrinsically safe construction is Class 1, Zone 1, Group IIB & T4 certified.
Modular components with limited cables allow for easy diagnostics and maintenance. On board self diagnostics minimizes troubleshooting and reduces MTTR. Remote Diagnostics via the web server option enables service support from anywhere in the world. The E35/37 controller's main circuitry modules, including the I/O boards and MC unit, are interchangeable with non-paint E controllers reducing spare parts inventory and order lead time. All standard circuitry and intrinsically safe components are now mounted inside the main controller enclosure, eliminating the bulky side box.
