• General purpose multipositioner
  • Vertical rotating axes + 2 Horizontal rotating axis
  • 2 stations
  • 2 Kawasaki external axis (E0x controller)
  •  Payload 1000 kg per side / Distance between flanches 1200-2500
Max. payload 1000 kg
Degree of freedom 3 axis
Max.diameter of detail 1300 mm
Load ratio between the parties 100:60
Nominal torque JT2/3 490 Nm
Max torque JT2/3 No
Turning range JT1 +/-182°
Turning range JT2/3 +/-360°*
Max. rotating speed JT1 60°/s
Max. rotating speed JT2/3 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT2/3 100 mm
Turning time JT1 (180°) 3.7 s
Max. mass moment of Inertia JT1 - without the inertia of the structure 4300 kgm2
Max. mass moment of Inertia JT2/3 192 kgm2
Mass 1350.0000
Max. loading height 1035 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew

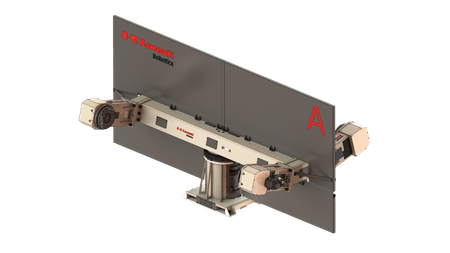

Multi axis welding positioner with vertical rotating axes and 2 horizontal rotating axis and 1000 kg payload
