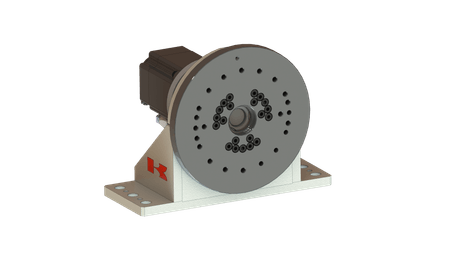

Single axis welding positioner with horizontal rotating axis and 1000 kg payload – ECO version
PST1000E
- General purpose single axis positioner - basic modul ECO version
- Horizontal rotating axis
- Kawasaki external axis (E0x controller)
- Payload 1000 kg
Max. payload | 1000 kg |
Degree of freedom | 1 axis |
Nominal torque JT1 | 1225 Nm |
Max. torque JT1 | 3062 Nm |
Max. tilting torque | 3430 Nm |
Turning range JT1 | +/-360° |
Max. rotating speed JT1 | 120°/s |
Repeatability | ±0.05 mm |
Max. offset COG from rotating axis JT1 | 112 mm |
Max. mass moment of inertia JT1 | 190 kgm2 |
Mass | 70.0000 |
Default height of rotating axis JT1 | 185 mm |
Installation | Floor |
Color | NCS S 0510-G50Y & RAL9011 |
Built-in utilities | Welding ground transfer system |
Nominal weld current - 100% duty cycle | 500 A |
Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
