• General purpose single axis positioner
  • Vertical rotating axis
  • Kawasaki external axis (E0x controller)
  • 2 stations
  •  Payload 125 kg per side
Max. payload 125 kg
Degree of freedom 1 axis
Nominal torque JT1 950 Nm
Max. torque JT1 2450 Nm
Max. tilting torque 4450 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 90°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 No
Max. mass moment of inertia JT1 990 kgm2
Mass 577.0000
Default height of rotating axis JT1 862 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew

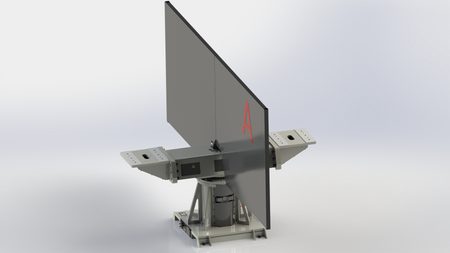

Single axis welding positioner with vertical rotating axis and 125 kg payload per side
