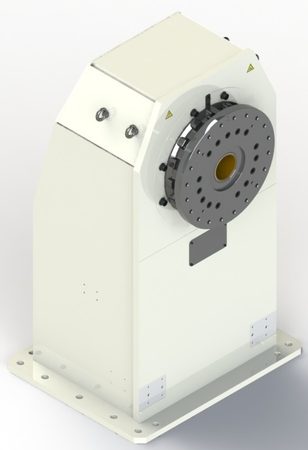

Single axis welding positioner with horizontal rotating axis and 2000 kg payload
PST2000
- General purpose single axis positioner - basic modul normal version
- Horizontal rotating axis
- Kawasaki external axis (E0x controller)
- Payload 2000 kg
Max. payload | 2000 kg |
Degree of freedom | 1 axis |
Nominal torque JT1 | 3136 Nm |
Max. torque JT1 | 7840 Nm |
Max. tilting torque | 20000 Nm |
Turning range JT1 | +/-360° |
Max. rotating speed JT1 | 70°/s |
Repeatability | ±0.05 mm |
Max. offset COG from rotating axis JT1 | 97 mm |
Max. mass moment of inertia JT1 | 3200 kgm2 |
Mass | 700.0000 |
Default height of rotating axis JT1 | 1025 mm |
Installation | Floor |
Color | NCS S 0510-G50Y & RAL9011 |
Built-in utilities | Welding ground transfer system |
Nominal weld current - 100% duty cycle | 500 A |
Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
