• General purpose single axis positioner - ECO version
  • Horizontal rotating axis
  • Supporting unit - extended length of workpiece
  • Kawasaki external axis (E0x controller)
  • Payload 250 kg
Max. payload 250 kg
Degree of freedom 1 axis
Nominal torque JT1 245 Nm
Max. torque JT1 612 Nm
Max. tilting torque 784 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 180°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 105 mm
Max. mass moment of inertia JT1 41 kgm2
Mass 40.0000
Default height of rotating axis JT1 131 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew

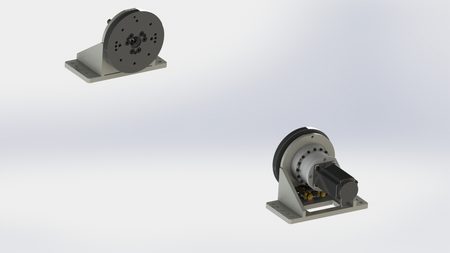

Single axis welding positioner with horizontal rotating axis and 250 kg payload – ECO version
