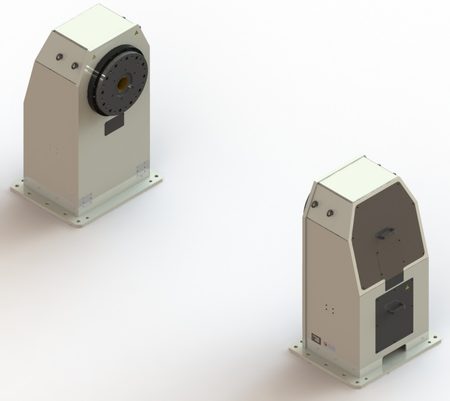

Single axis welding positioner with horizontal rotating axis and 3300 kg payload
PST3000-H1
- General purpose single axis positioner
- Horizontal rotating axis
- Supporting unit - extended length of workpiece
- Kawasaki external axis (E0x controller)
- Payload 3300 kg
- Option: central beam**
| Max. payload | 3300 kg |
| Degree of freedom | 1 axis |
| Nominal torque JT1 | 3136 Nm |
| Max. torque JT1 | 7840 Nm |
| Max. tilting torque | 20000 Nm |
| Turning range JT1 | +/-360° |
| Max. rotating speed JT1 | 70°/s |
| Repeatability | ±0.05 mm |
| Max. offset COG from rotating axis JT1 | 97 mm |
| Max. mass moment of inertia JT1 | 3200 kgm2 |
| Mass | 1400.0000 |
| Default height of rotating axis JT1 | 1025 mm |
| Installation | Floor |
| Color | NCS S 0510-G50Y & RAL9011 |
| Built-in utilities | Welding ground transfer system |
| Nominal weld current - 100% duty cycle | 500 A |
| Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
