• General purpose single axis positioner
  • Horizontal rotating axis
  • Supporting unit - extended length of workpiece
  • Kawasaki external axis (E0x controller)
  • Payload 500 kg
Max. payload 500 kg
Degree of freedom 1 axis
Nominal torque JT1 490 Nm
Max. torque JT1 1200 Nm
Max. tilting torque 1450 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 100 mm
Max. mass moment of inertia JT1 192 kgm2
Mass 220.0000
Default height of rotating axis JT1 545 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew

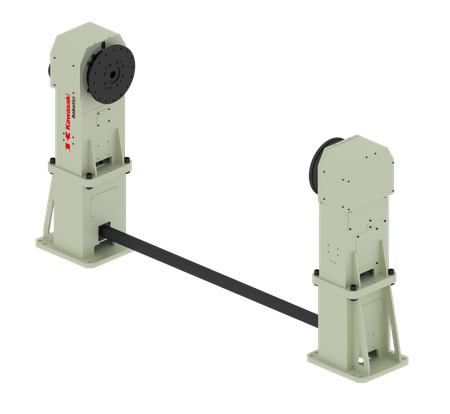

Single axis welding positioner with horizontal rotating axis and 500 kg payload
