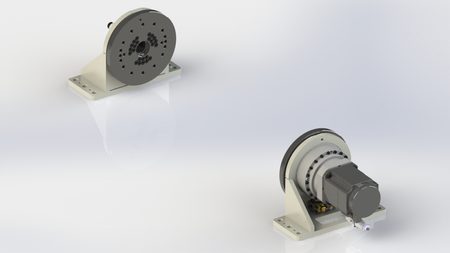

Single axis welding positioner with horizontal rotating axis and 500 kg payload – ECO version
PST500E-H1
- General purpose single axis positioner - ECO version
- Horizontal rotating axis
- Supporting unit - extended length of workpiece
- Kawasaki external axis (E0x controller)
- Payload 500 kg
| Max. payload | 500 kg |
| Degree of freedom | 1 axis |
| Nominal torque JT1 | 600 Nm |
| Max. torque JT1 | 1500 Nm |
| Max. tilting torque | 2000 Nm |
| Turning range JT1 | +/-360° |
| Max. rotating speed JT1 | 150°/s |
| Repeatability | ±0.05 mm |
| Max. offset COG from rotating axis JT1 | 122 mm |
| Max. mass moment of inertia JT1 | 107 kgm2 |
| Mass | 90.0000 |
| Default height of rotating axis JT1 | 158 mm |
| Installation | Floor |
| Color | NCS S 0510-G50Y & RAL9011 |
| Built-in utilities | Welding ground transfer system |
| Nominal weld current - 100% duty cycle | 500 A |
| Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
