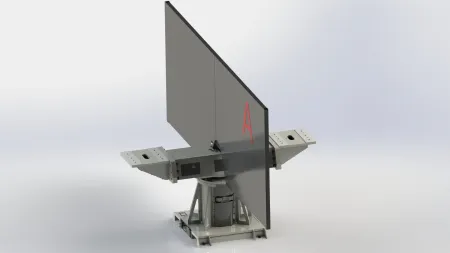

Single axis welding positioner with vertical rotating axis and 125 kg payload per side
PST125-M1V1
- General purpose single axis positioner
- Vertical rotating axis
- Kawasaki external axis (E0x controller)
- 2 stations
- Payload 125 kg per side
| Max. payload | 125 kg |
| Degree of freedom | 1 axis |
| Nominal torque JT1 | 950 Nm |
| Max. torque JT1 | 2450 Nm |
| Max. tilting torque | 4450 Nm |
| Turning range JT1 | +/-360° |
| Max. rotating speed JT1 | 90°/s |
| Repeatability | ±0.05 mm |
| Max. offset COG from rotating axis JT1 | No |
| Max. mass moment of inertia JT1 | 990 kgm2 |
| Mass | 577.0000 |
| Default height of rotating axis JT1 | 862 mm |
| Installation | Floor |
| Color | NCS S 0510-G50Y & RAL9011 |
| Built-in utilities | Welding ground transfer system |
| Nominal weld current - 100% duty cycle | 500 A |
| Environment cond. | 0÷40°C (Humidity) 35÷85%, no dew |
